Sinking Or Uneven Floors In Your Home Near Portland, Bangor, Rochester

Floors Above Crawl Spaces

The floor joists above a typical crawl space are supported by the perimeter walls of the crawl space foundation, and by a post or column-and-beam framework that extends down the center of the crawl space

Although the perimeter walls of a crawl space can settle or shift to cause floor problems above, it's more common for the center support system to settle or sag because it wasn't properly built in the first place.

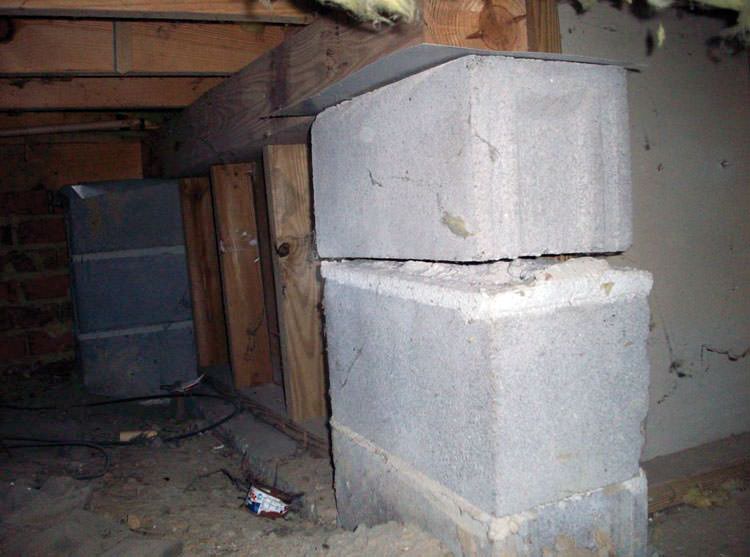

A center post-and-beam support system can also weaken and settle because moisture in a dirt-floored crawl space has caused wood supports to rot and collapse. As crawl space structures begin to sag, the floor above will sag in turn.

Other symptoms of a sagging crawl space include interior wall cracks, jamming doors, and gaps between walls or doors and the floor underneath them.

More about sinking, sagging crawl spaces.

The Solution:

At TC Hafford Basement Systems, we can quickly and effectively repair a crawl space structural issue with our heavy duty crawl space jacks. Crawl space jacks are adjustable steel posts that will stabilize sagging crawl space structures.

During installation, we prepare a base of compacted engineered fill at all jack placement points, located directly beneath the main support beam. We install a pre-cast concrete base on this fill, and then extend a crawl space jack between the base and the beam.

Once each jack's threaded rod is adjusted beneath the post, the weight bearing on the beam is transferred to the soil below. Additionally, this system allows the contractor to push a sagging floor back toward its original level position.

Our warrantied crawl space jacks can effectively stabilize your crawl space -- usually in a day.

More about crawl space jacks.

Settling, Sinking Concrete Floors

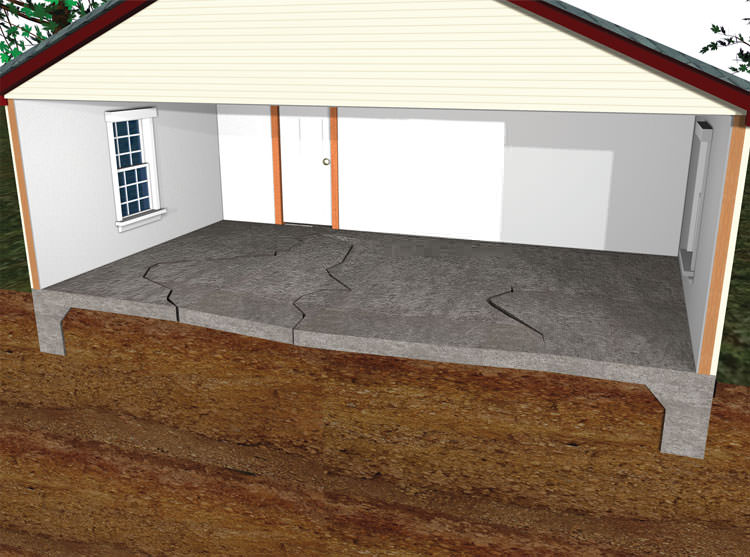

Since masonry is more likely to break than bend, concrete floors that are uneven are generally cracked and/or broken as well.

If your foundation is settling, it may be lifting the concrete floor as the rest of the foundation experiences movement.

There are also times where the slab floor can lift or sink independently of the walls. Concrete slab floors crack and settle when the soils underneath them shrink, settle or wash away.

Likewise, a concrete slab will lift, or "heave", when the soils underneath expand.

A concrete slab can move independently of adjacent foundation walls, or along with them. Since settlement isn't uniform, one section of a slab may be elevated as another section sinks down.

More about foundation settlement.

More about sinking slab floors.

The Solution:

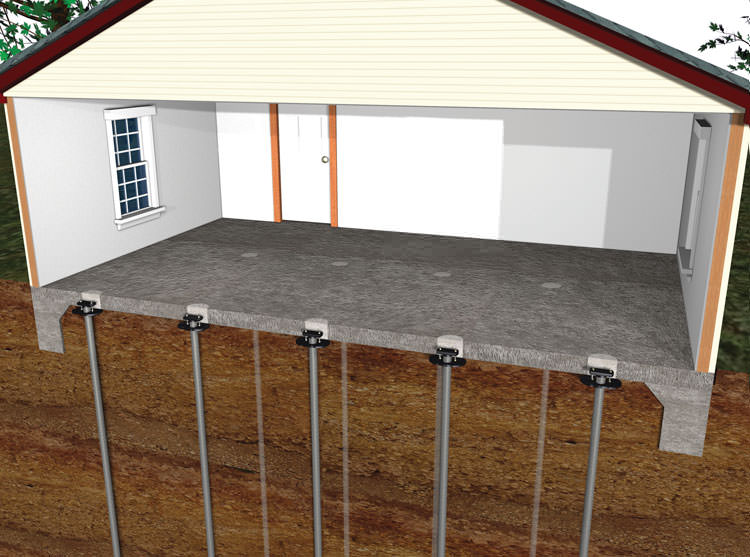

Slab floors that are sinking independently of the walls can be repaired with a slab pier system, shown on the right. These piers are placed in cored holes in the floor, extending down to competent soils to hold your floor in place. They can even be used to lift a slab back to its original, level position.

If the floor is cracked and uneven because of foundation settlement, then your contractor will recommend either foundation push piers or helical piers to stabilize the entire foundation. Foundation piers can also be used to lift the foundation to its original position in some cases.

Foundation heave is a complicated and multifaceted problem that requires a professional inspection.

More about foundation heave.
